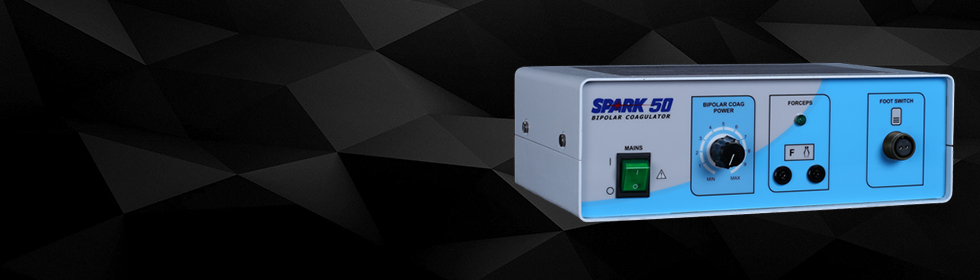

SPARK 50

Spark 50 is a dedicated bipolar coagulator with 100 watts coagulation power. This unit is most suitable for laparoscopic sterilization procedures, neuro surgeries, ENT surgeries and small clinics where minor procedures are carried out..

SPARK 125

This is a compact surgical diathermy ideal for ENT surgeons. It has both monopolar and bipolar outputssufficient enough for ENT procedures. The quality of cut and coag is very superior and procedures the least amount of sparking and charring. Small clinics and minor OTs find this model very useful.

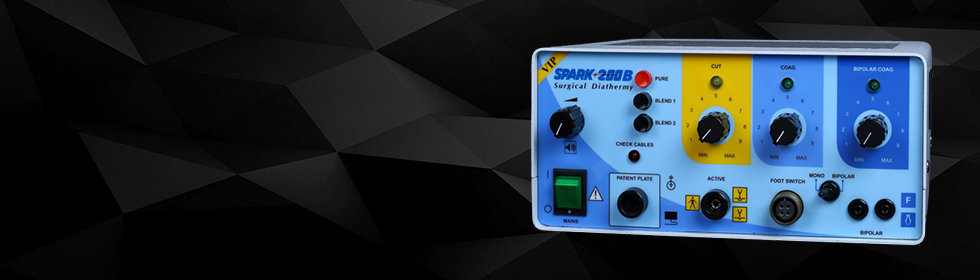

SPARK 200B

This is the most popular analogue model amongst general surgeons, orthopedic surgeons and gynaecologists. Most of the procedures other than underwater cutting (EXCEPT TURP/endometrial ablation, myoma resection/tumourous region resections) can be carried out comfortably with this model. The bipolar has full 100 watts output sufficient for most surgeries. The model has a built in voltage stabilizer and combination use of monopolar cut with bipolar coagulation is enabled.

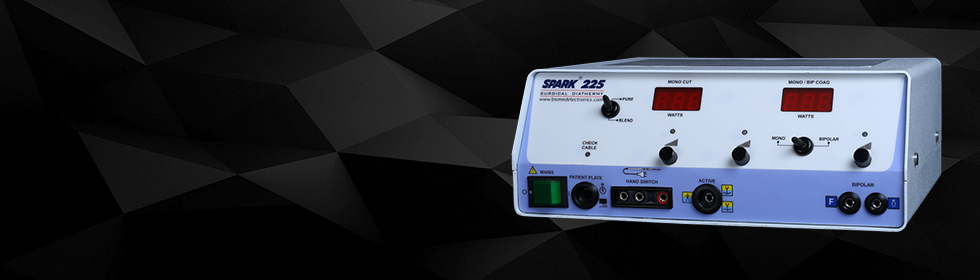

SPARK 225

This model is an advanced version of Spark 200B with handswitch pencil controlled monopolar outputs. The stainless steel patient plate is substituted with a silicone rubber patient plate. Power can be digitally set in steps of 1 watt. This model is popular with neuro surgeons and general surgeons who do advanced procedures.

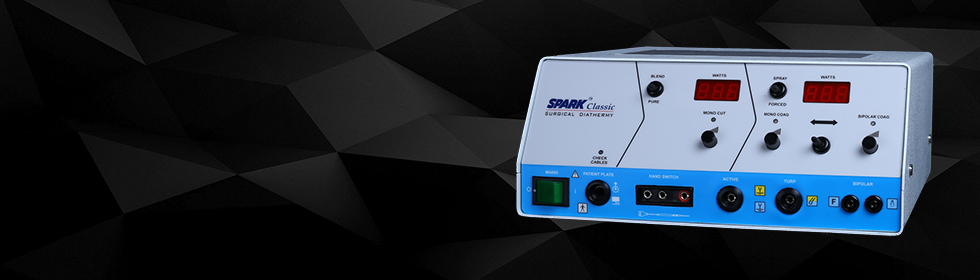

SPARK CLASSIC

The true value cautery. This is a digital underwater cutting surgical diathermy that can be used for TURP, Laparoscopy & general surgical procedures. Standard features include handswitch & silicone rubber patient plate. A dedicated TURP socket ensures better loop life & smooth output for underwater cutting applications. The spray mode in monopolar coag gives an added advantage. This unit delivers superior coagulation thanks to its special design.

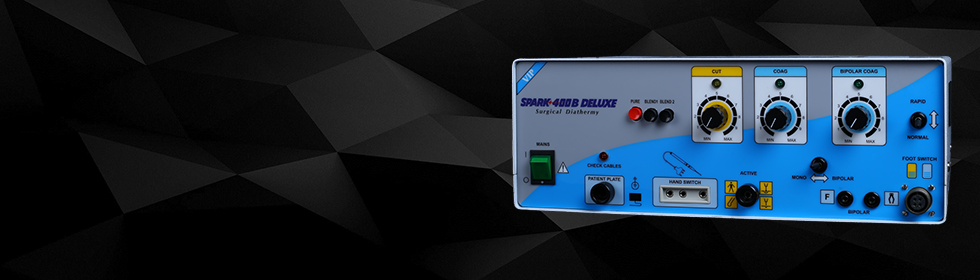

SPARK 400B DELUXE

This underwater cutting diathermy has all the features that is mostly asked for like silicone rubber patient plate, handswitch pencil, combination use of mono cut with bipolar coagulation etc. This model is very rugged and ideal for centres where more number of surgeons are likely to use the same diathermy for different procedures. Urologists are provided with a Rapid cut function for overcoming lag during TURP which incidentally saves the cutting loop life as well.

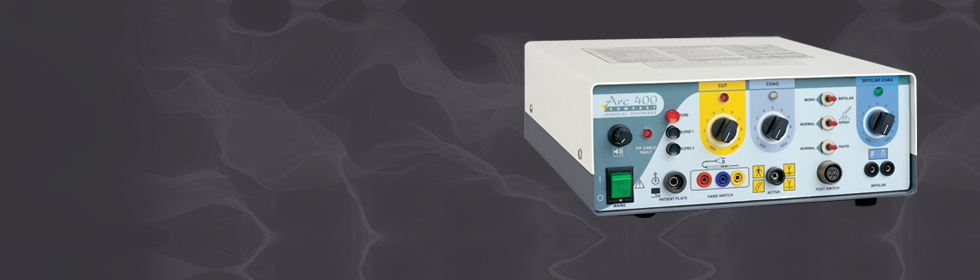

ARC 400 COMPACT

This is the standard model available from the Arc series surgical diathermy units. This model is very popular with urologists since it hs a cutting loop life enhancing Rapid Cut function. Also laparoscopic surgeons appreciate its superior quality of bipolar coagulation (full 100 watts whitish coagulation). Also combination use of mono cut with bipolar coagulation is enabled.

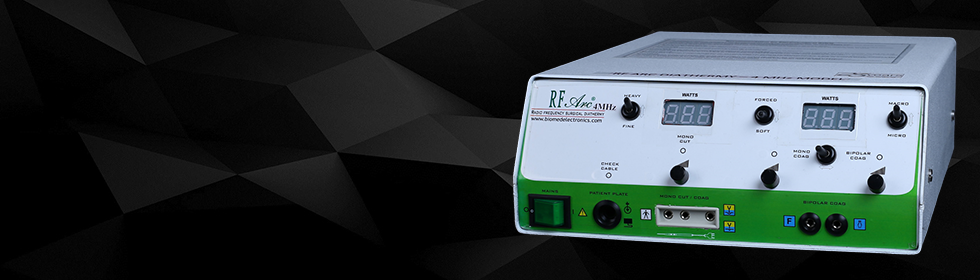

RF ARC

Advanced 4 MHz Radio Frequency surgery with minimal heat dissipation hence lesser cellular alteration with a very wide range of application. RF ARC has an extremely wide spectrum of clinical applications and it guarantees quick tissue healing and patient recovery.

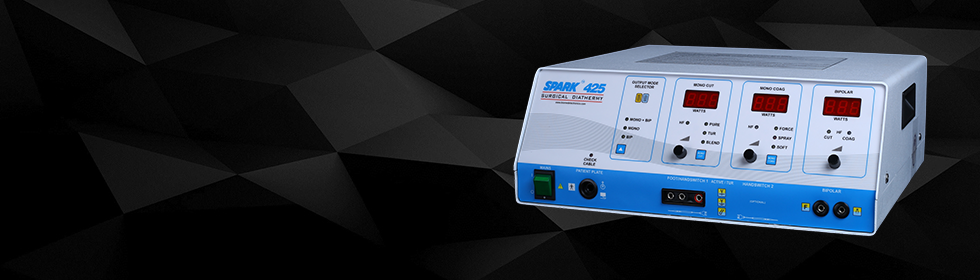

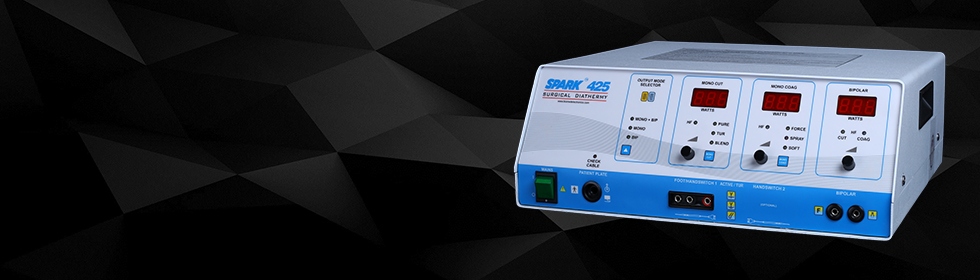

SPARK 425

This model is the top most one in terms of high tech functional features from the SPARK series surgical diathermy units. HF output power can be set digitally in steps of 1 watt upto 400 watts. All types of surgeries right from paediatric upto urological underwater cutting procedures, onco surgeries etc can be comfortably carried out. Specialized features include inbuilt voltage stabilizer, three modes monopolar coagulation and three modes of bipolar coagulation. Laparoscopic surgeons are provided with a one touch selection for monopolar cut with bipolar coagulation. All advanced functions are grouped together on the front panel with feather touch controls.

ARC 666

Arc 666 is a multi-functional micro controller based surgical diathermy suitable for both open and endoscopic procedures ranging from pediatrics to cardiac surgeries. Specialized functions include soft/spray coag ,bipcut/underwater cut, combi mode for laparoscopic surgeries etc. It comes with 10 programmable memory which can store all power setting and advanced functions. Seperate TURP socket is provided for TURP applications

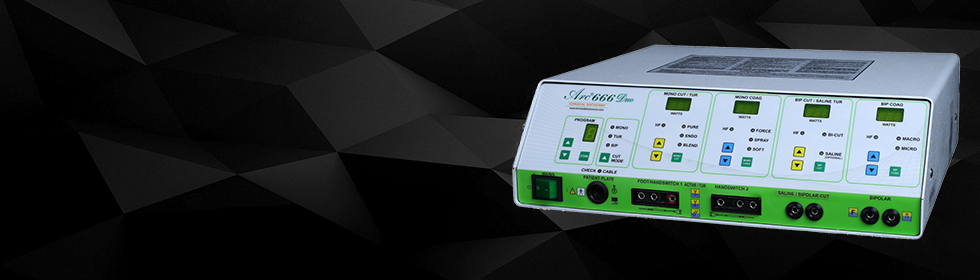

ARC 666 DUO

Programmable Diathermy with Dual Outputs Arc 666 Duo is a programmable microprocessor based surgical diathermy. It is suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. It allows simultaneous use by two surgical teams on a single patient as it has two monopolar outputs through hand switch pencils. Specialised functions include Endo cut / TUR, in monopolar mode forced / soft / spray coag, bipolar saline cutting, bipolar micro / macro coag, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, programmable memory, handswitched output etc.

SPARK 425 DUO

Digital Diathermy with Dual Outputs Spark 425 Duo is a multi-functional digital surgical diathermy suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. It has the capability to give two monopolar outputs through hand switch pencils. Specialized functions include soft/spray coag, bipolar cutting, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, double handswitched output etc.
ARC 777

ARC 777 DUO

SURE SEAL ARC

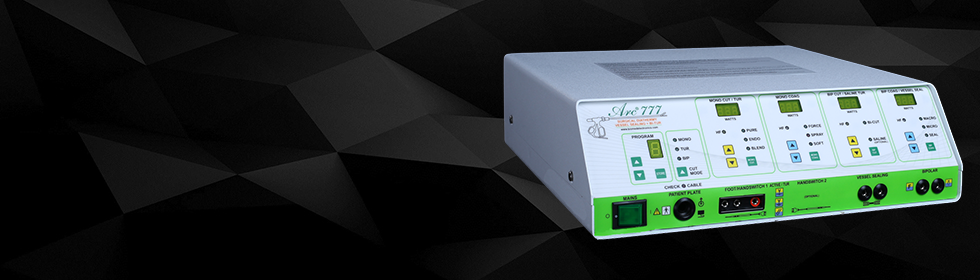

ARC 777

Arc 777 is a multi-functional micro controller based surgical diathermy suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. Specialized functions include automatic vessel sealing, micro/macro bip coag, soft/spray coag, bipcut/underwater cut, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, programmable memory, handswitched output etc. It comes with 10 programmable memory which can store all power setting and advanced functions. Seperate TURP socket is provided for TURP

ARC 777 DUO

Programmable Diathermy with Vessel Sealer technology and Dual Outputs Arc 777 Duo is a programmable microprocessor based surgical diathermy with vessel sealing function. It is suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. It allows simultaneous use by two surgical teams on a single patient as it has two monopolar outputs through hand switch pencils. Specialised functions include Endo cut / TUR, in monopolar mode forced / soft / spray coag, bipolar saline cutting, bipolar micro / macro coag, automatic vessel sealing, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, programmable memory, handswitched output etc.

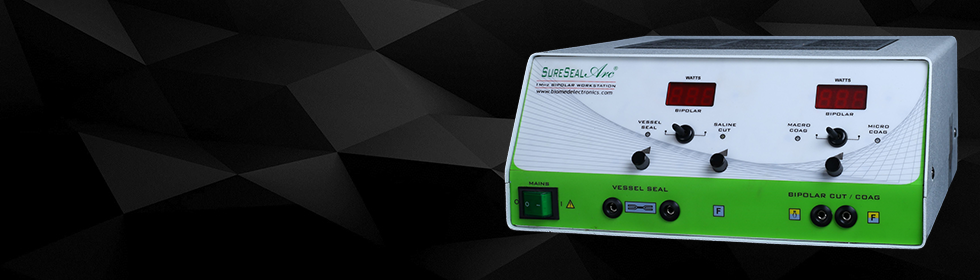

SURE SEAL ARC

1 MHz Bipolar Work Station! Sure Seal Arc is a standalone bipolar workstation capable of performing all kinds of bipolar surgeries including vessel sealing function, saline cutting, micro coagulation, macro coagulation etc. The 1 MHz HF output of Sure Seal Arc ensures lesser lateral spread and better performance. Digital display and fine control enable precise bipolar output.
ARC 666 DUO

SPARK 425 DUO

ARC 666 DUO

Programmable Diathermy with Dual Outputs Arc 666 Duo is a programmable microprocessor based surgical diathermy. It is suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. It allows simultaneous use by two surgical teams on a single patient as it has two monopolar outputs through hand switch pencils. Specialised functions include Endo cut / TUR, in monopolar mode forced / soft / spray coag, bipolar saline cutting, bipolar micro / macro coag, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, programmable memory, handswitched output etc.

SPARK 425 DUO

Digital Diathermy with Dual Outputs Spark 425 Duo is a multi-functional digital surgical diathermy suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. It has the capability to give two monopolar outputs through hand switch pencils. Specialized functions include soft/spray coag, bipolar cutting, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, double handswitched output etc.

SPARK 425 DUO

Digital Diathermy with Dual Outputs Spark 425 Duo is a multi-functional digital surgical diathermy suitable for both open and endoscopic procedures ranging from paediatric to cardiac surgeries. It has the capability to give two monopolar outputs through hand switch pencils. Specialized functions include soft/spray coag, bipolar cutting, combi mode for laparoscopic surgeries etc. Standard features include inbuilt voltage stabilizer, double handswitched output etc.

Description

General Description

The Univac Duo is a double pump unit housed in a single cabinet for simultaneous use of suction and irrigation functions in Laparoscopic surgeries in Gynecology and Gastroenterology. This suction irrigation unit also finds application in specialized surgeries like Arthroscopy, Neuro, ENT, and general surgery where quick removal of blood ,blood clots and pressure washing of surgical site is required. Suction flow rate is variable upto 16 litres per minute and variable irrigation pressure upto 600 mm Hg.

Salient Features

Imported diaphragm pump with non-contaminating body.
Independent & simultaneous operation of suction and irrigation possible.
Collection bottle with overflow protection by mechanical float & internal filter.
Variable flow rate and restart against vacuum.
Irrigation pressurization air filtered through antibacterial filter.
Irrigation pressure variable and maximum limit optionally settable.
Withstands power supply voltage fluctuations (with inbuilt stabilizer).
Light weight and portable unit.
Indication gauges provided for vacuum and pressure.
Suitable for use with endoscopic instruments.

Standard Accessories

Univac Duo suction-Irrigation unit with integral controls.
Fluid collection bottle with rubber cap & overflow cut off – 1 set.
Metal tube connections for Irrigation bottle.
• Air pressurisation needle – 1 No.
• Outflow cannula – 1 No.
Irrigation bottle holder (for fixing on to the pump cabinet) – 1 set.
Silicone rubber connection tube – 1 pair.

Technical Specifications

Vacuum : Max (-) 600mm Hg (800m bar)
Free flow rate : 20 litres/min (variable)
Irrigation Pressure : 600 mm Hg (0.66 bar) variable
Free flow rate : 7 litres/min (3 to 7 litres/min settable on request)
Suction Collection bottle : 2.0 litres capacity bottle having overflow protection
Irrigation bottle : Accepts saline/glycene bottles (disposable) of 500 ml to 3000 ml capacity
Power consumption : 100 watts (230 volts, 50Hz) with inbuilt voltage stabilizer

Physical Dimensions

Unit size : 305mm x 140mm x 240 mm
Unit Gross weight : 10 Kgs (with bottle)

* Due to continuous improvement in design for compliance with International standards, the technical specifications are subject to alterations without notice.
