Description

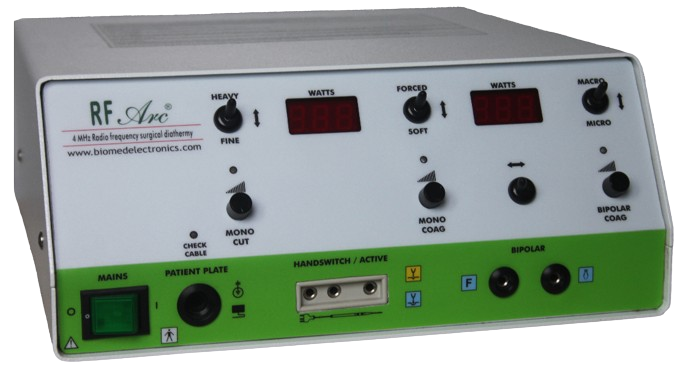

RF ARC - 150 Watts Radio Frequency Surgical Diathermy with full 4 MHz

Why4 MHz? Higher the operating frequency, lesser the lateral spread and lesser rise in temperature at surgical site. This is exactly what happens with the 4 MHz produced by the RF ARC in both bipolar and monopolar modes.

The major advantages of 4 MHz RF ARC are

Energy is administered gently and in a highly focused fashion.
Pressure-less incision
Preservation of tissue tautness
Minimal necrosis compared to conventional units
No carbonization / charring
Quicker wound healing due to lower temperature and lower necrosis
No recurrent bleeding
Excisions taken can be examined histo-pathologically

Salient features

Full 4 MHz Output for Monopolar and Bipolar
Two types of monopolar cut - Fine Cut and Heavy Cut
Two types of monopolar coag - Forced Coag and Soft Coag
Two types of bipolar coag - Macro Coag and Micro Coag
Monopolar Outputs via handswitch Pencil / Double pedal Footswitch
HF output power can be set digitally in small increments
Steady HF output at set value even under line voltage fluctuating conditions
Audio visual monitoring of patient plate circuit
Combined or independent use of mono bipolar functions enabled
Separate generators for monopolar and bipolar functions
Autoclavable accessories

APPLICATIONS

General / Open Surgery
Neuro Surgery
ENT Surgery
Cosmetic Surgery
Conization
Discoplasty
Tonsillectomy
Hemorrhoids
Wart and corn removal

Standard Accessories

Colour coded double pedal footswitch with cable and connector.
Silicone rubber patient plate with detachable connection cable& rubber strap with punched holes.
Reusable Active electrode handle with set of 4 electrodes & silicone rubber insulated cable.
Reusable insulated bipolar forceps with silicone rubber insulated cable.
Reusable Handswitch surgical pencil with one blade electrode.

Technical Specifications

HF Power Display: 3-digit LED display
HF Power control: Digital control in small increments
Rated frequency: 4 MHZ
Design: Voltage Independent Performance
Monopolar Fine Cut: 150 watts (variable)
Monopolar Heavy Cut: 150 watts (variable)
Monopolar Forced Coag: 100 watts (variable)
Monopolar Soft Coag: 120 watts (variable)
Bipolar Macro Coag: 120 watts (variable)
Bipolar Micro Coag: 60 watts (variable)

Physical Dimensions

Size: 350mm x 325mm x 135mm
Weight: 5 Kgs
Power consumption: 350 Watts (230V, 50Hz)

* Due to continuous improvement in design for compliance with International standards, the technical specifications are subject to alterations without notice.
