Description
General Description

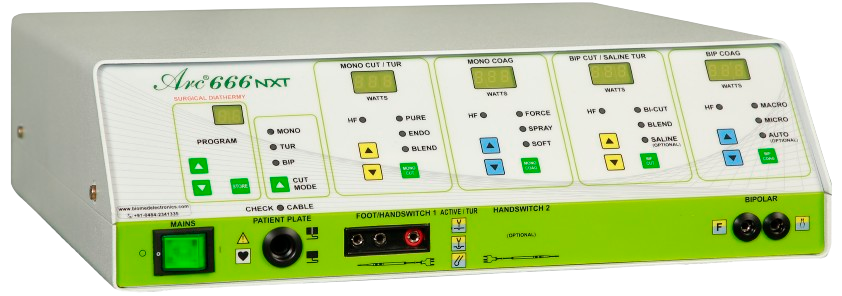

ARC 666 NXT – Programmable Surgical Diathermy
ARC 666 NXT is a programmable microprocessor based surgical diathermy with memory function. It is suitable for all open and endoscopic
procedures, cardiothoracic surgery, general surgery, gynecology, gastro, neuro, onco, ortho, peadiatrics etc.
The ARC 666 NXT is a multi-functional diathermy which can cater to all surgical specialties. It has options for upgradation to dual handswitch, saline
bipolar underwater cutting. Dual handswitch output (optional upgrade) enables use by two surgical teams on a single patient. Specialized functions
include Endo Cut / TUR, Forced / Soft / Spray Monopolar Coagulation, Blended / Standard Bipolar cutting, Saline TUR (optional upgrade) in bipolar,
Micro / Macro Bipolar coag etc.
Salient Features
- Updated Tissue Impedance Sensing Technology
- Independent footswitch for bipolar coag
- Corrosion resistant, powder coated Aluminum body
- Audio & visual monitoring of patient plate circuit
- HF output power can be set digitally in small increments
- Relatively charring free whitish bipolar coagulation effects
- Split Pad & Single Pad Patient Plate Compatible
- SMPS & MOSFET based design
- Microprocessor based with 99 Memory function
- Auto Bipolar - Optional Upgrade
- Dual Handswitch - Optional Upgrade (DUO)
- 500 KHz Operating Frequency
- Audio & Visual monitoring of patient plate circuit
- Type CF / Floating output for extra safety
- Instrument ports compatible with other international brand instruments
- Optional upgrade to add Smoke evacuator
Standard Accessories
- Colour coded two pedal footswitch with cable and connector.
- Colour coded single pedal footswitch with cable and connector.
- Silicone Rubber patient plate with detachable connection cable.
- Reusable Active electrode handle with set of 4 electrodes & silicone rubber insulated cable.
- Reusable Insulated bipolar forceps with silicone rubber insulated cable.
- Handswitch surgical pencil with cable.
TECHNICAL SPECIFICATIONS
- Monopolar Cutting: 400 Watts
- Mono Cut Modes - BLEND / ENDO / TUR: YES
- Monopolar Coagulation: 120 Watts
- Mono Coag - FORCE / SOFT / SPRAY: YES
- Bipolar Coagulation: 120 Watts
- Bipolar Coag Modes - MACRO / MICRO: YES
- Bipolar Cutting - STD / BLEND / SALINE: 120 / 150 / 300 Watts
- Bipolar Saline Under Water Cutting: YES
- Vessel Sealing with Auto Stop: YES
- Handswitch Output: SINGLE (Optional DOUBLE)
- Programming & Memory Function YES - 99 Nos
APPLICATIONS
- General / Open Surgery
- Neuro Surgery
- ENT Surgery
- All endoscopy procedures
- Gynaec Surgery
- Ortho Surgery
- Cosmetic Surgery
- Hysteroscopy / Arthroscopy / URS
Physical Dimensions
Size: 450 mm x 390 mm x 118 mm
Weight: 6 Kgs
Power rating: 230 V, 50 Hz
* Due to continuous improvement in design for compliance with International standards, the technical specifications are subject to alterations without notice.
