Description

General Description

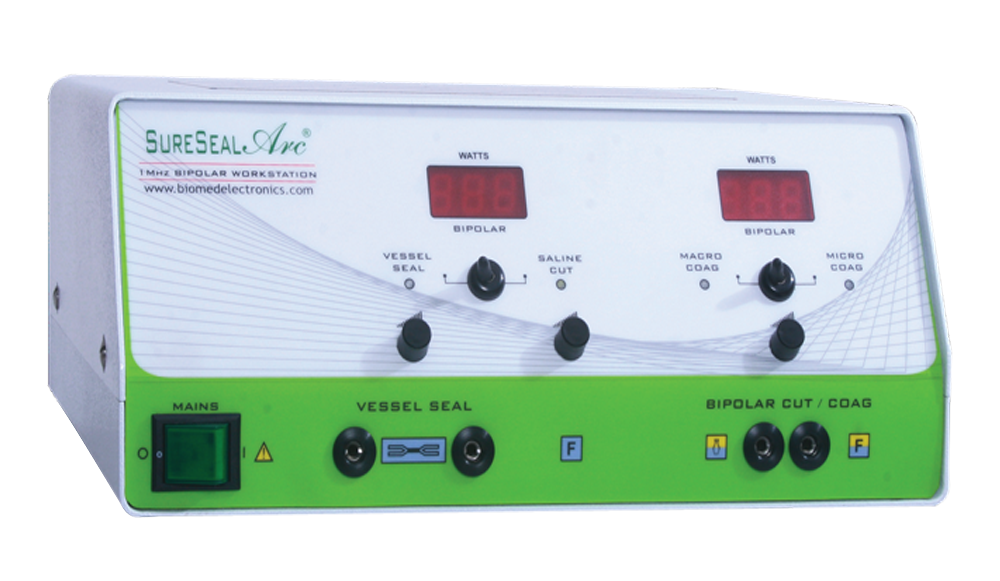

1 MHz Bipolar Work Station! Sure Seal Arc is a standalone bipolar workstation capable of performing all kinds of bipolar surgeries including vessel sealing function, saline cutting, micro coagulation, macro coagulation etc. The 1 MHz HF output of Sure Seal Arc ensures lesser lateral spread and better performance. Digital display and fine control enable precise bipolar output.

Technical Specifications
  • HF Power Display : 3 digit LED display
  • HF Power control : Digital control in small increments .
Vessel Sealing Function
  • Vessel sealing power : 120 watts (variable)
  • Capability for sealing vessels : All vessels upto 7mm dia
  • Vessel sealing output : Available through separate sockets
Bipolar Coagulation
  • Macro Coag : 120 watts (variable)
  • Micro Coag : 120 watts (variable)
  • Rated frequency : 1MHz
Bipolar Cut
  • Cut : 200 watts (variable)
  • Bipolar Saline Cut : Enabled
  • Rated frequency : 1MHz
Laparoscopy output:
    Bipolar outputs same as given above.
Line voltage fluctuation compatibility
  • Working range : Steady HF output for line voltages from 170 to 250 volts, 50 Hz
  • Maximum range : Steady HF output for line voltages from 200 to 250 volts, 50 Hz
Internal Power supply:
SMPS
Physical Dimensions
  • Size : 350 mm x 325 mm x 135 mm
  • Weight : 5 Kgs
  • Power consumption : 400 Watts (230V, 50Hz)
SALIENT FEATURES OF SURE SEAL ARC
  • 1 MHz HF output for superior quality bipolar effects.
  • Vessel sealing output capable of sealing vessels upto 7mm automatically.
  • Auto cut off for vessel seal output.
  • Both Normal and Saline Bipolar cutting enabled.
  • Two modes of bipolar coagulation.
  • Macro coagulation for powerful wide area contact coagulation.
  • Micro coagulation for pin point coagulation
  • HF output power can be set digitally in small increments
  • Steady HF output at set value even under line voltage fluctuating conditions.
  • Audio & visual monitoring of patient plate circuit
  • Autoclavable accessories
  • Smooth bipolar cut for adhesiolysis / endometrial abalation / Saline TURP
  • Relatively charring free whitish bipolar coagulation effects
STANDARD ACCESSORIES
  • Colour coded double pedal footswitch with cable and connector.
  • Reusable Insulated bipolar forceps with silicone rubber insulated cable
  • Laparoscopic vessel sealer (5 mm)
  • Open surgery vessel sealer / biclamp

* Due to continuous improvement in design for compliance with International standards, the technical specifications are subject to alterations without notice.
